150 Ton Capacity Electric Hydraulic Shop Press, Heavy Duty Pressing
$12,999.00
60 in stock
Features
Within 24 hrs of placing your order one of our Product Specialists will contact you and go over specifications to ensure a proper fit to your machine and schedule delivery.
Shipping
All of our products $1000 or over * qualify for free LTL freight shipping**
*Free shipping does not apply to loading ramps and other oversized products.
**Buyer must have a way to offload the shipment to qualify for free delivery. If lift gate service is required there will be a $150 fee.

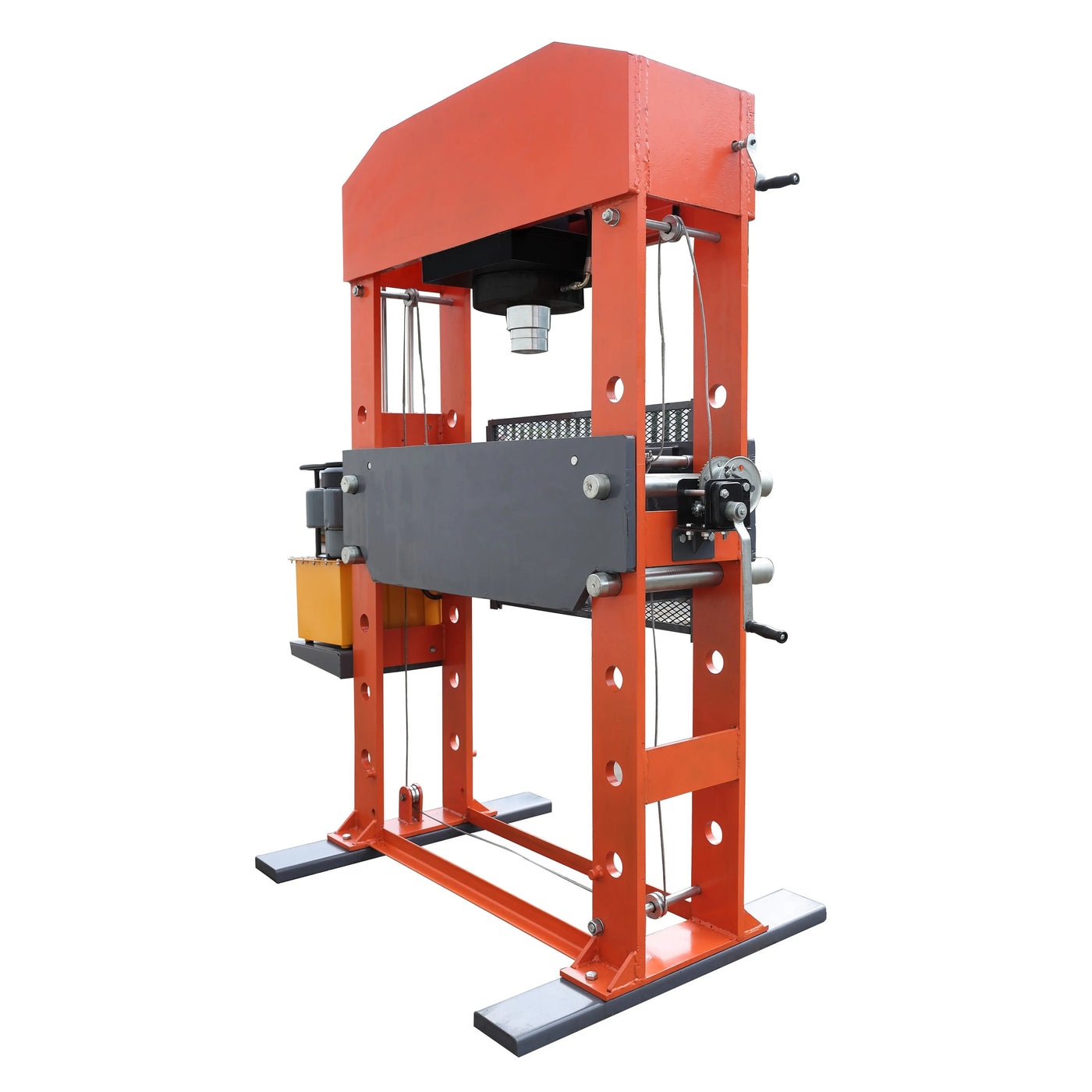

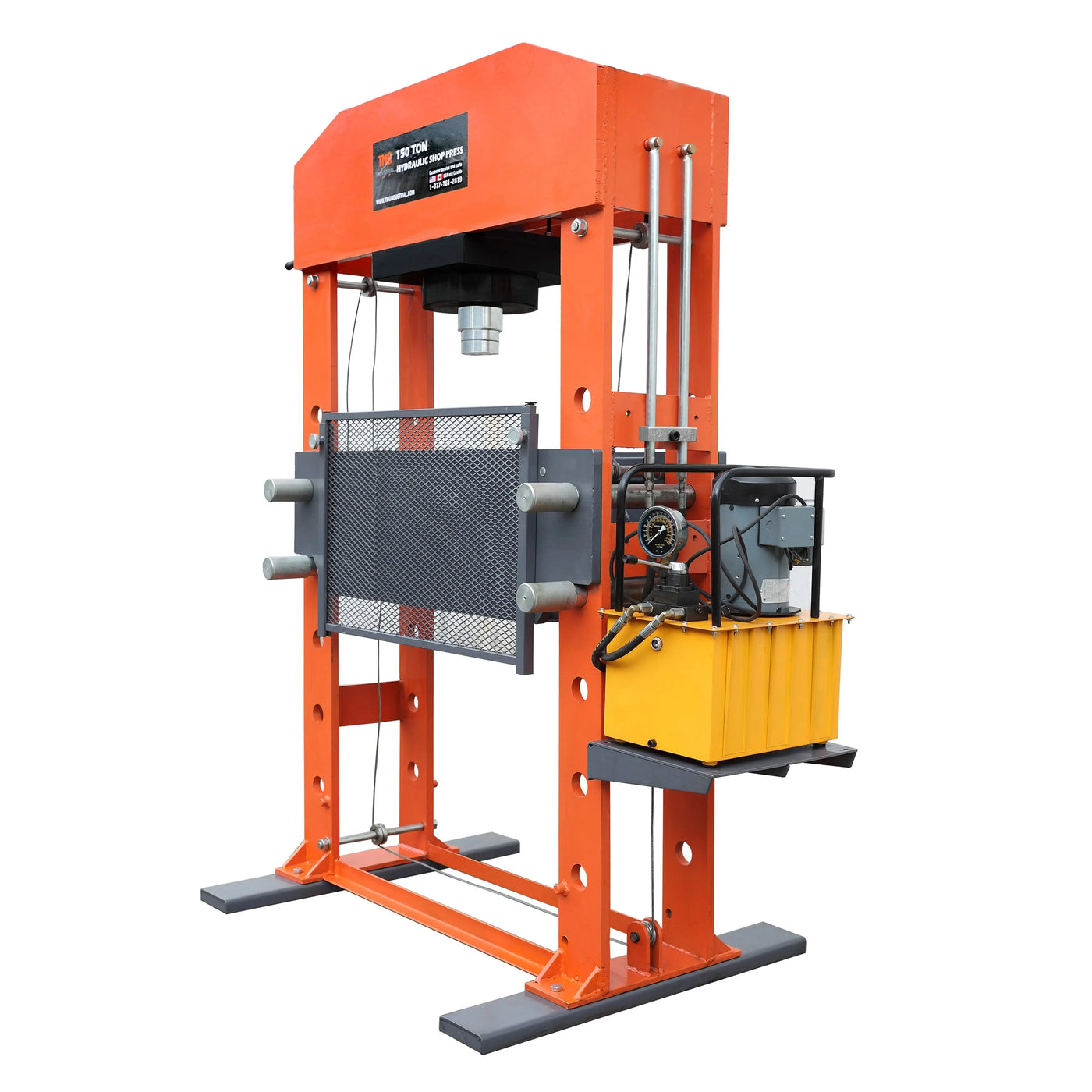

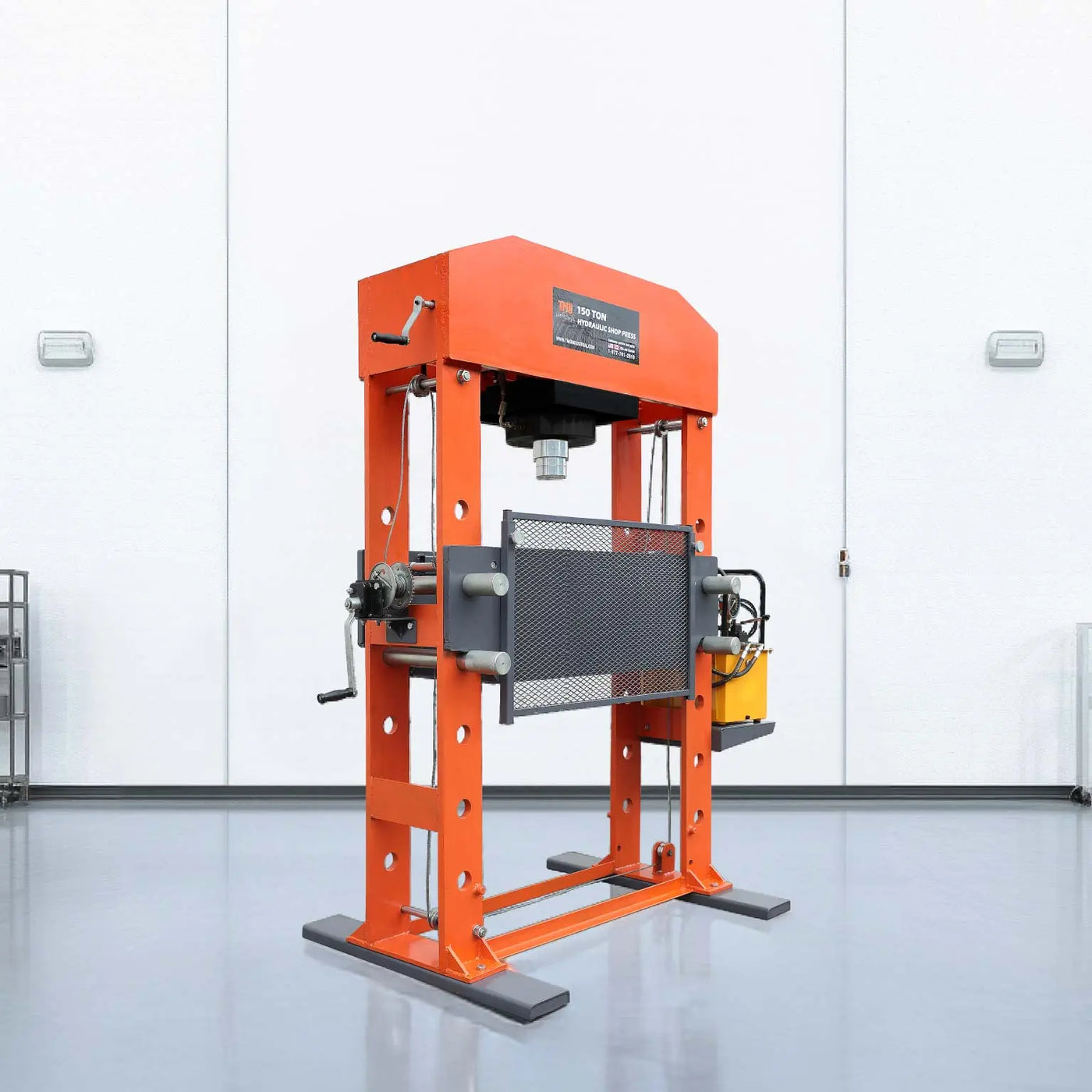

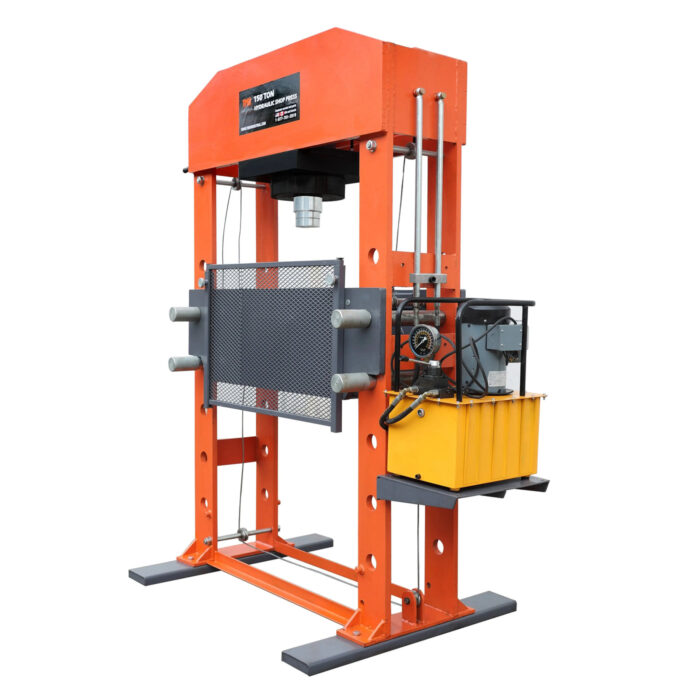

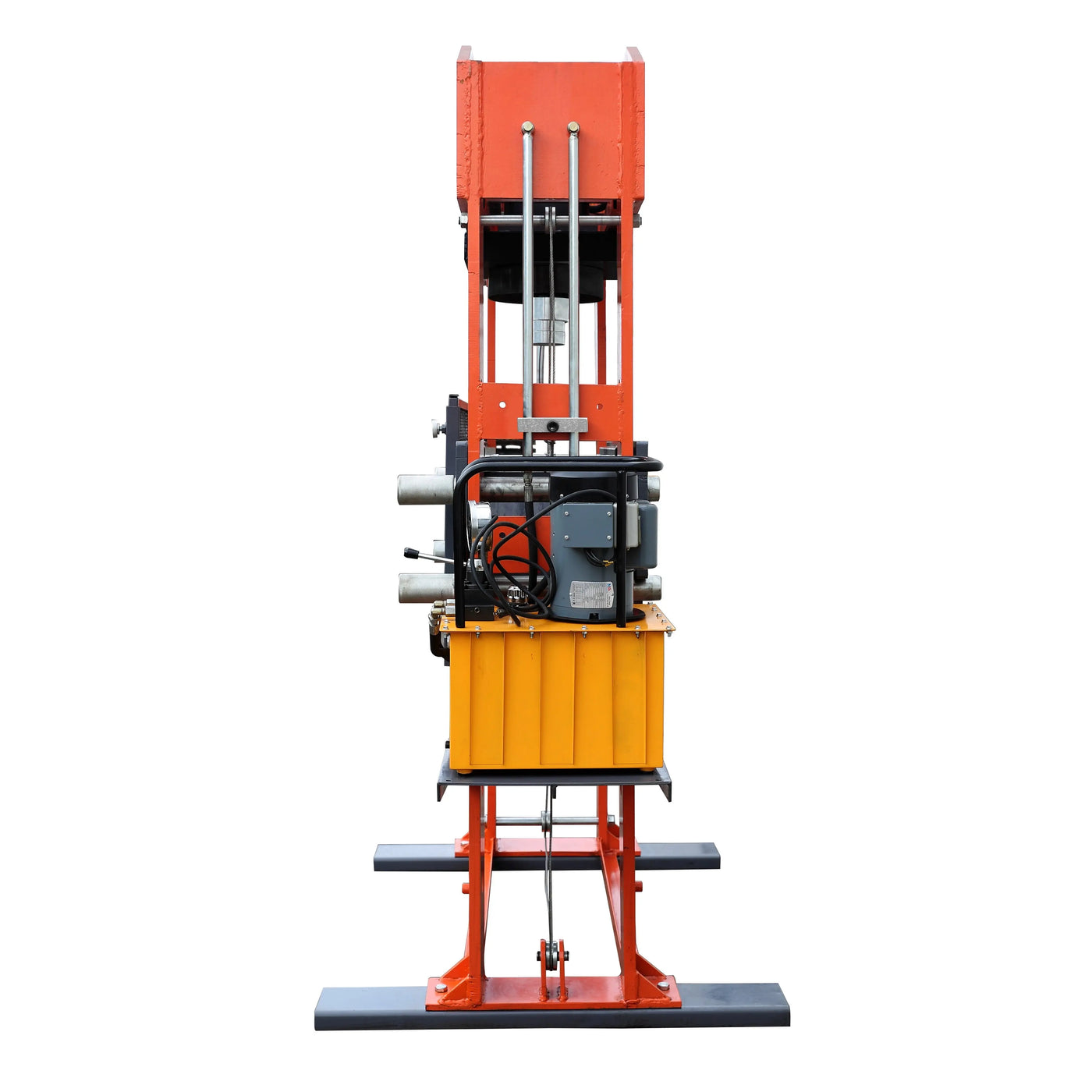

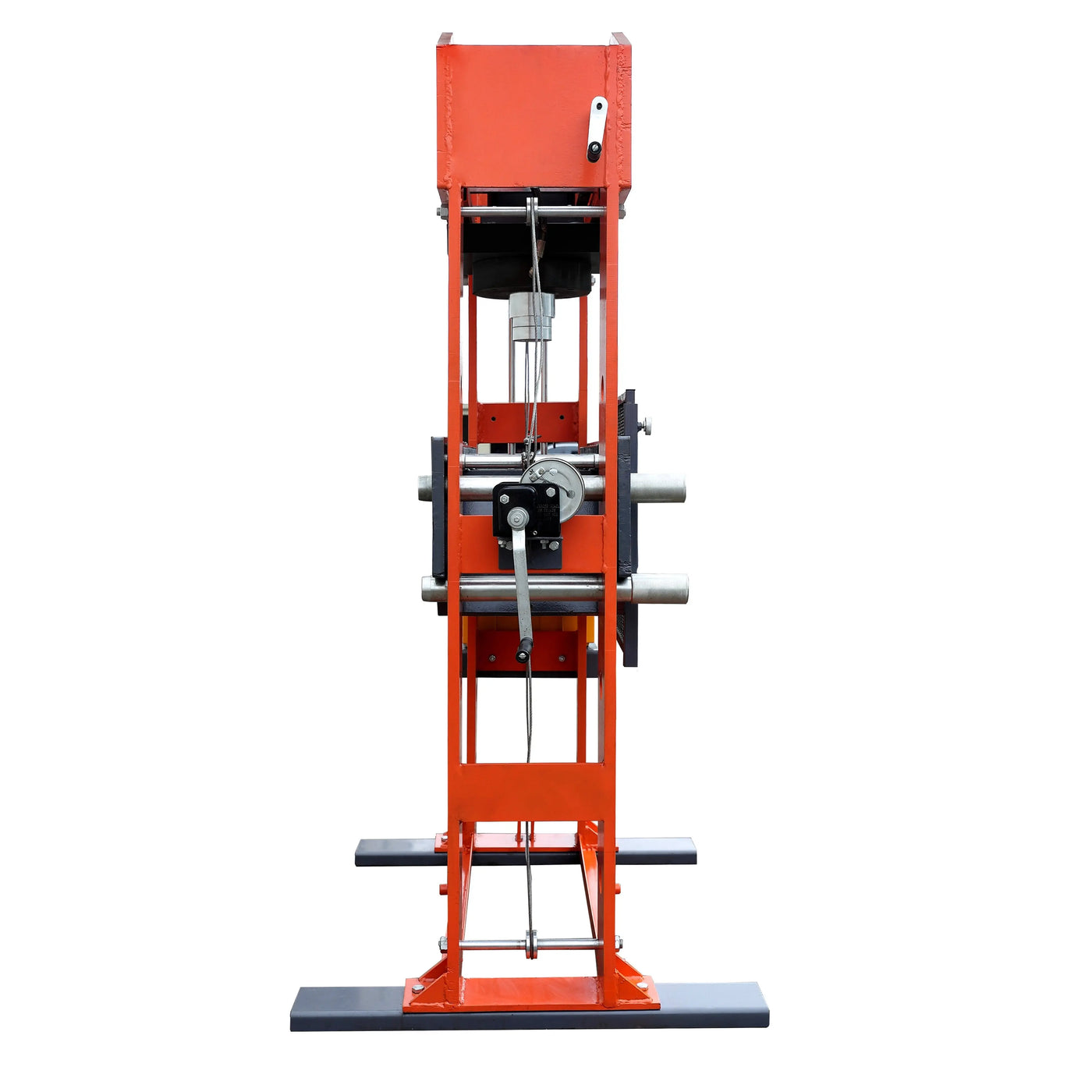

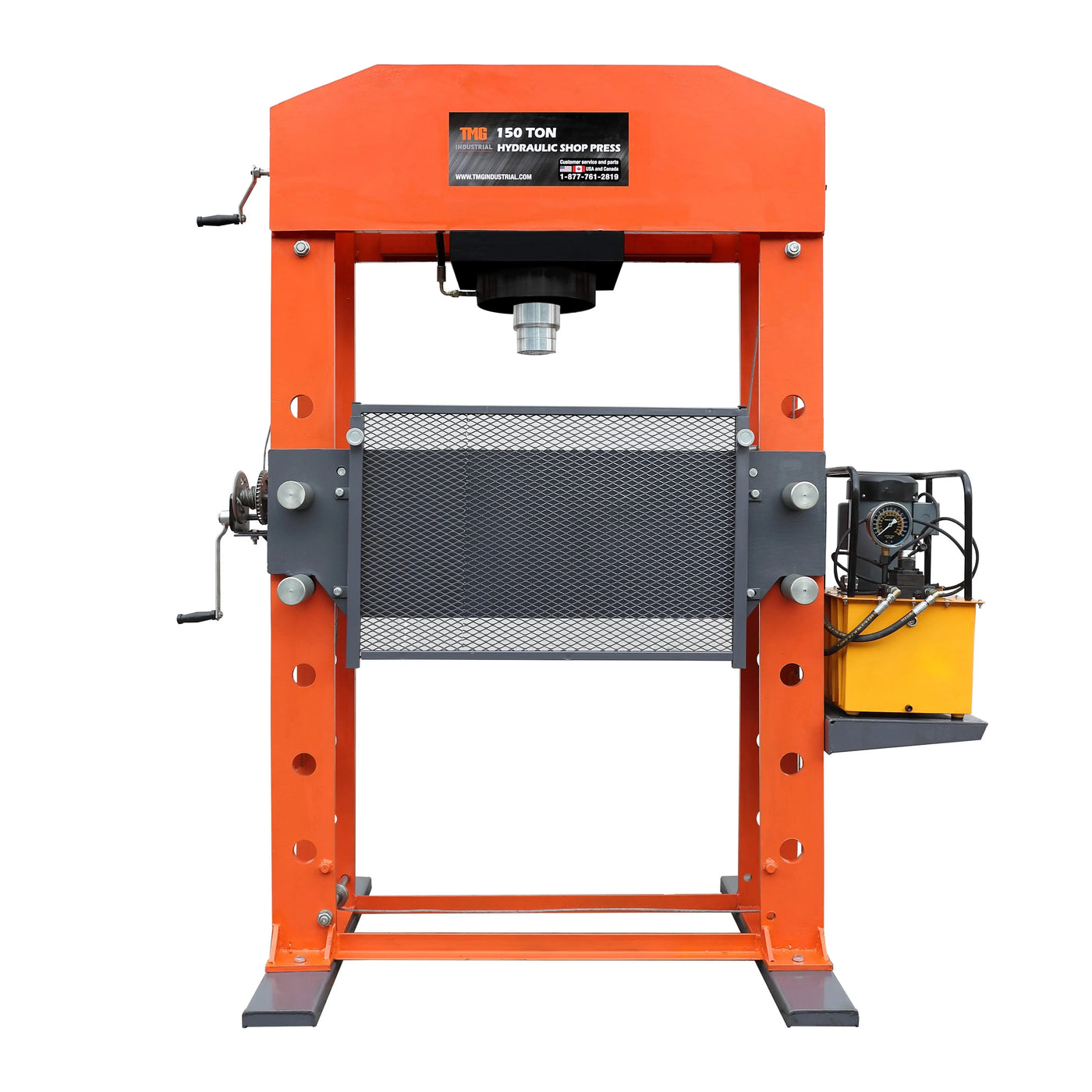

The TMG-SP150 Hydraulic Shop Press is an essential piece of equipment for any type of automotive shop, machining, metalworks, fabrication or assembly operations. An incredible 150 ton pressing capacity makes pushing bearings onto shafts, stamp work, bending or flattening metal safe, efficient and easy to do. This press has a fully welded heavy-duty H-frame construction and protective grid guard that are both rigid, durable and built to last in any shop environment. Specifications
Overall dimension: 78" x 40" x 83" (L x W x H)
Frame internal width: 13-¾"
Frame internal length: 39-?"
Ram stroke: 13-¾"
Ram diameter: 4-?"
Ram left-right movement: 13"
Ram pressing head diameter: 3-?"
Protective grid guard: 36" x 23" (W x H)
Carriage bed workable opening: 34" x 16" (L x W)
Carriage bed pin diameter: 2-¼"
Discharge pressure: 105-115%
Max pump pressure: 8500 PSI
Pressure gauge accurate to +/- 2.5%
Maximum workpiece height allowed: 37"
Hydraulic fluid for motor pump not included (ISO AW32 required)
Motor:
CSA approved electric motor: 115 V, 60 Hz, 2 HP
No-load speed: 1750 RPM
Details
- 30 day returns
- Free shipping
- Secure checkout
- 6-month warranty
