12’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars
$8,999.00
60 in stock
Features
Within 24 hrs of placing your order one of our Product Specialists will contact you and go over specifications to ensure a proper fit to your machine and schedule delivery.
Shipping
All of our products $1000 or over * qualify for free LTL freight shipping**
*Free shipping does not apply to loading ramps and other oversized products.
**Buyer must have a way to offload the shipment to qualify for free delivery. If lift gate service is required there will be a $150 fee.

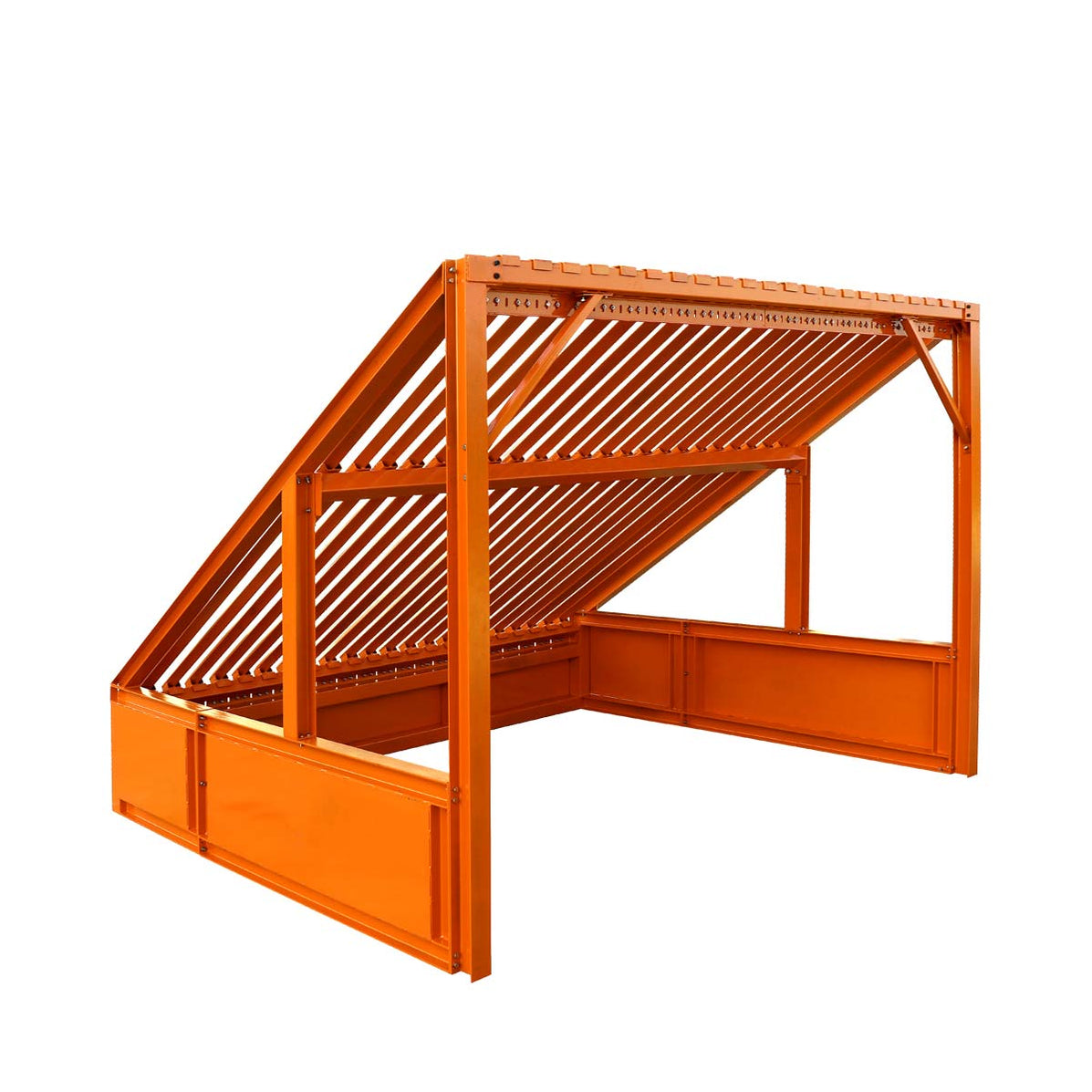

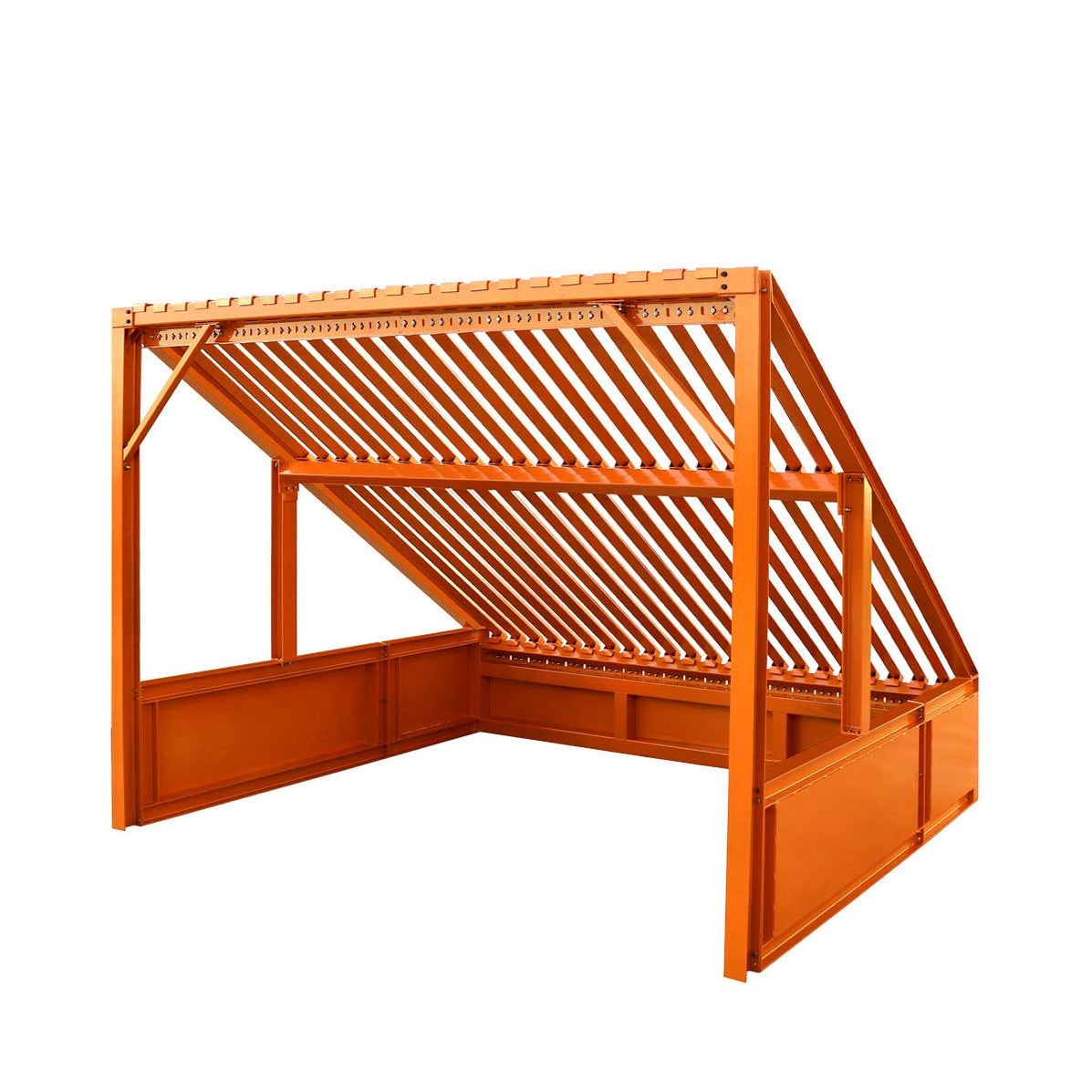

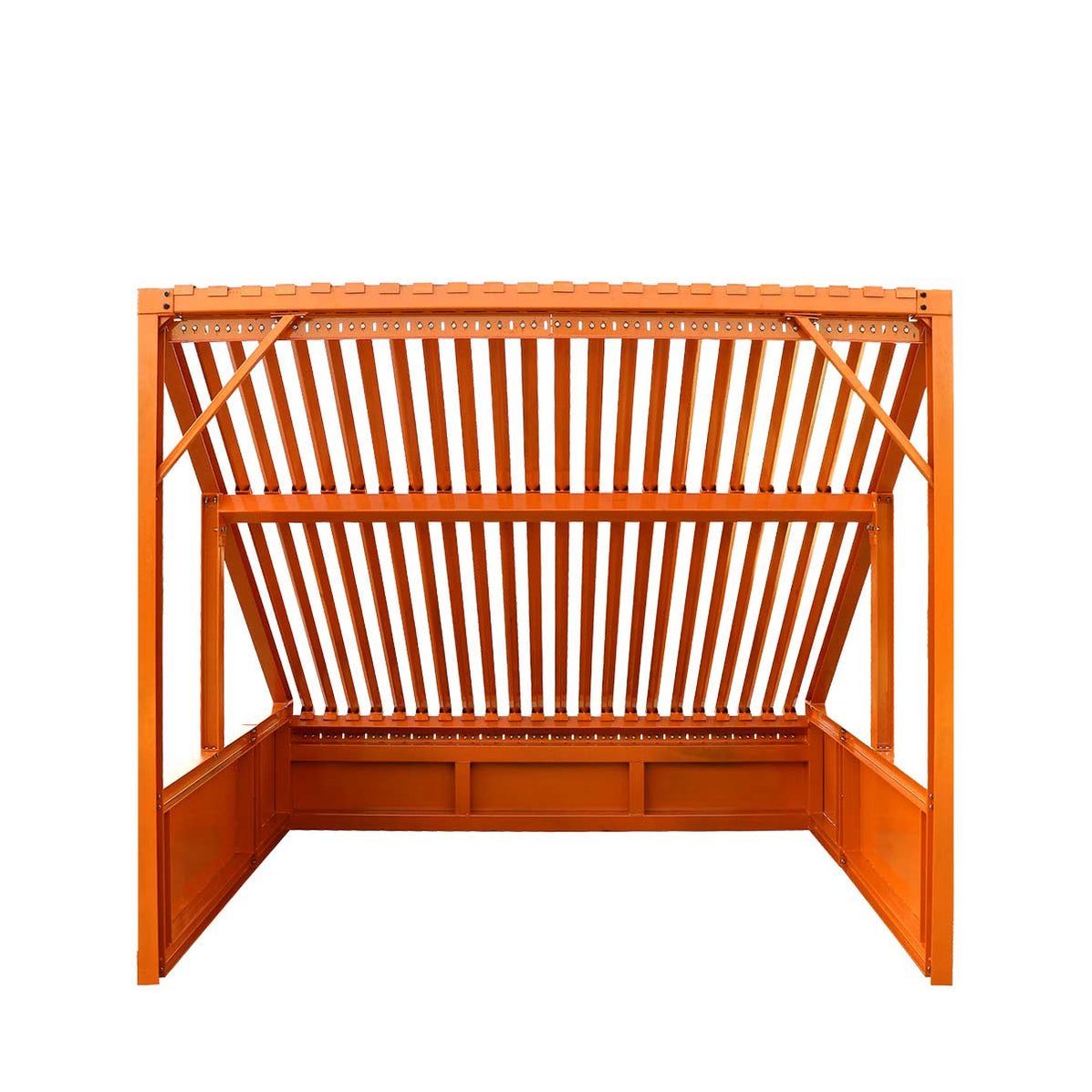

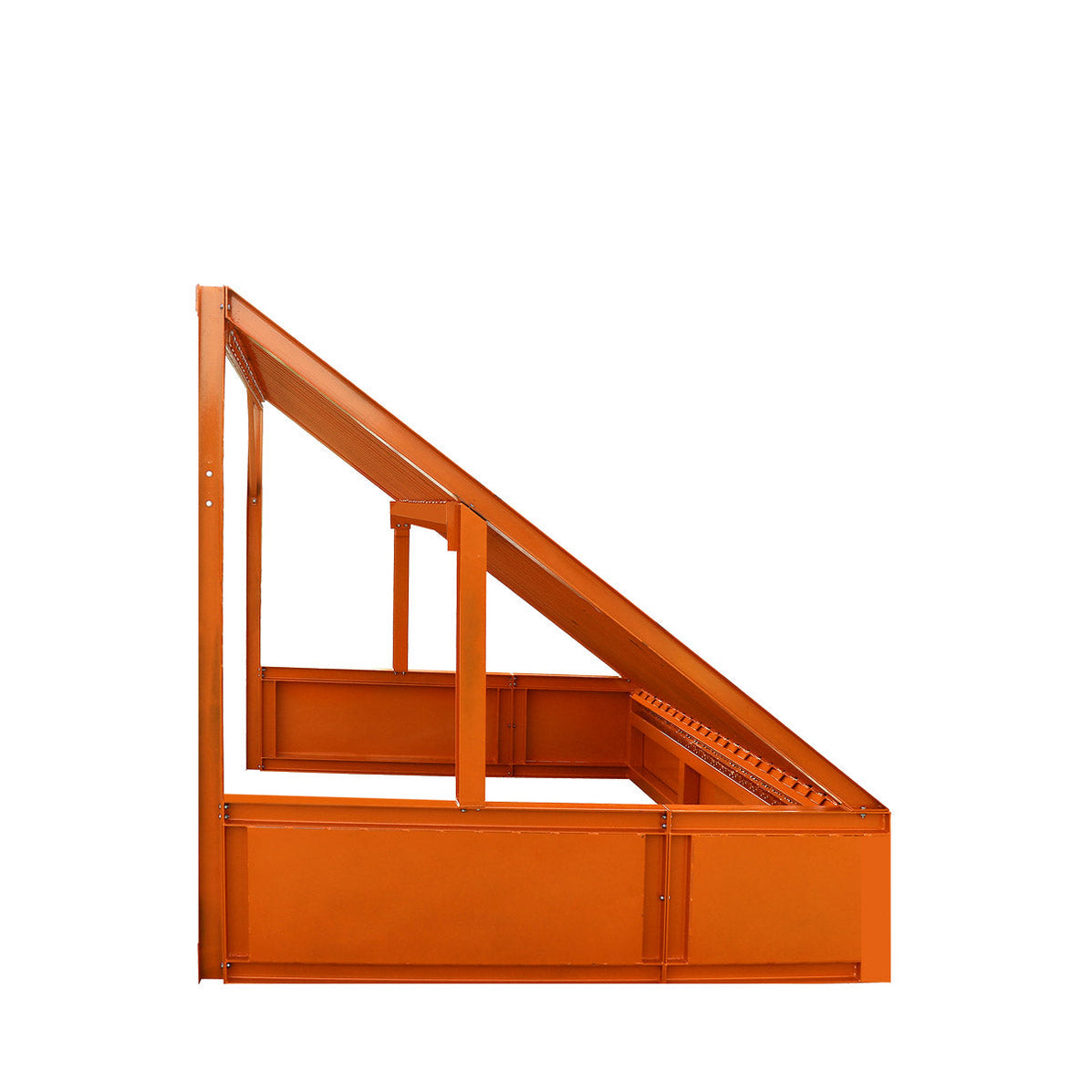

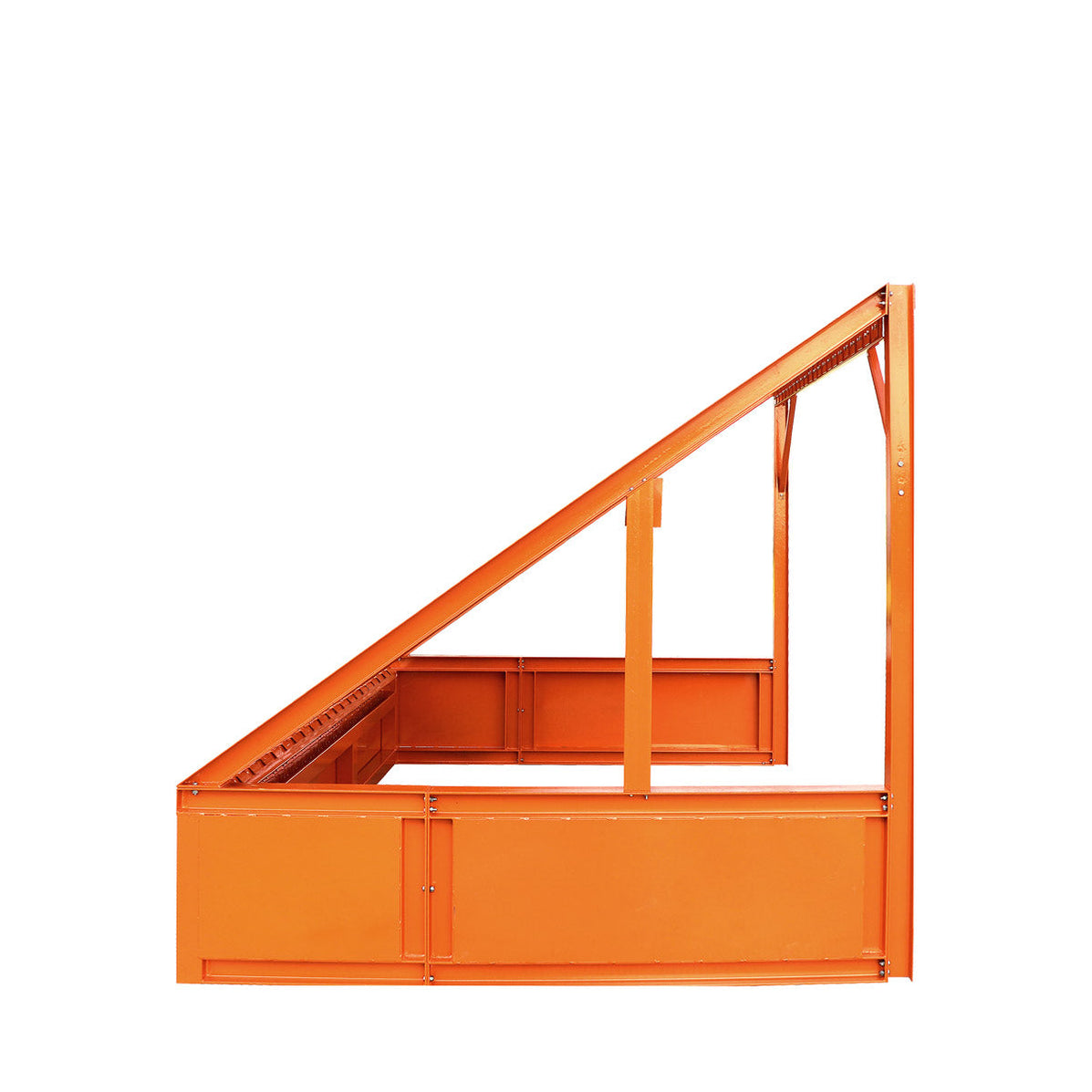

The TMG-RS12 Heavy-Duty Static Grizzly Rock Screen makes the screening of bulky, mixed loads simple and efficient. Sort materials with ease by always having this screen available at your work yard or job site. Used extensively in a number of industries including open-pit mining, recycling, crushing, aggregates, site development, demolition and landscaping. This screener is built tough, made to last and will handle anything you can throw at it. Specifications

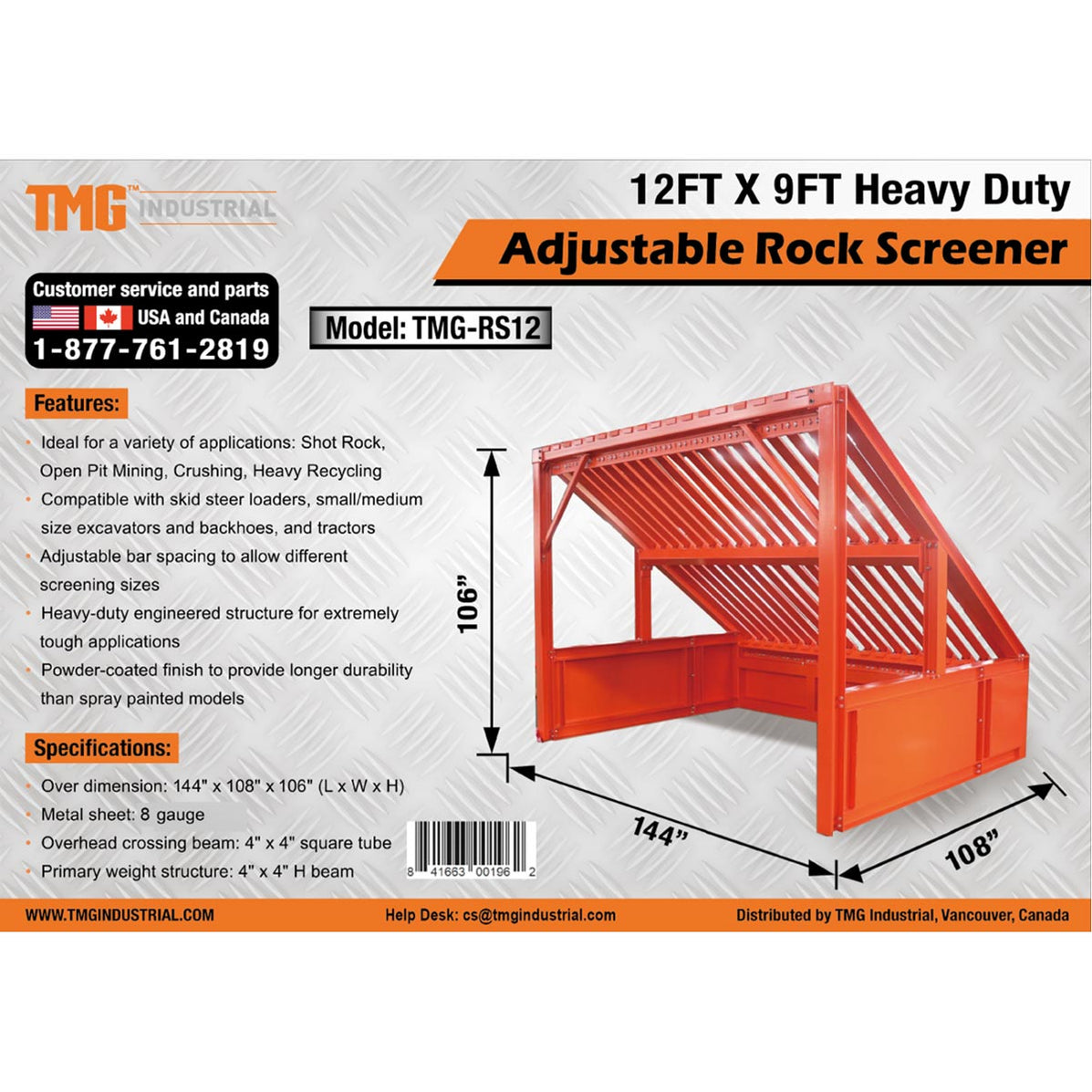

Structure size: 12'(L) x 9' (W) x 8.9' (H)
Average load capacity: 5000 lb

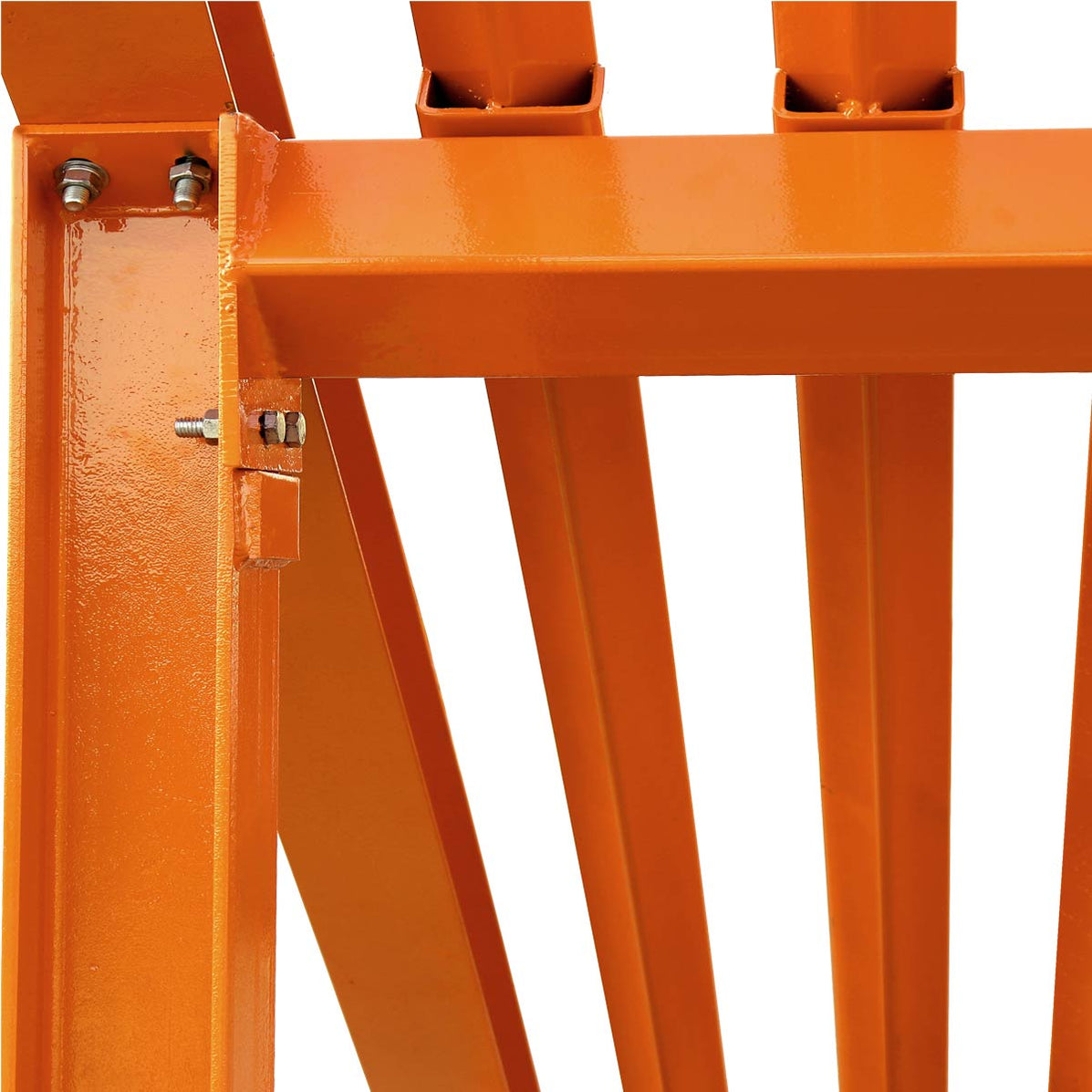

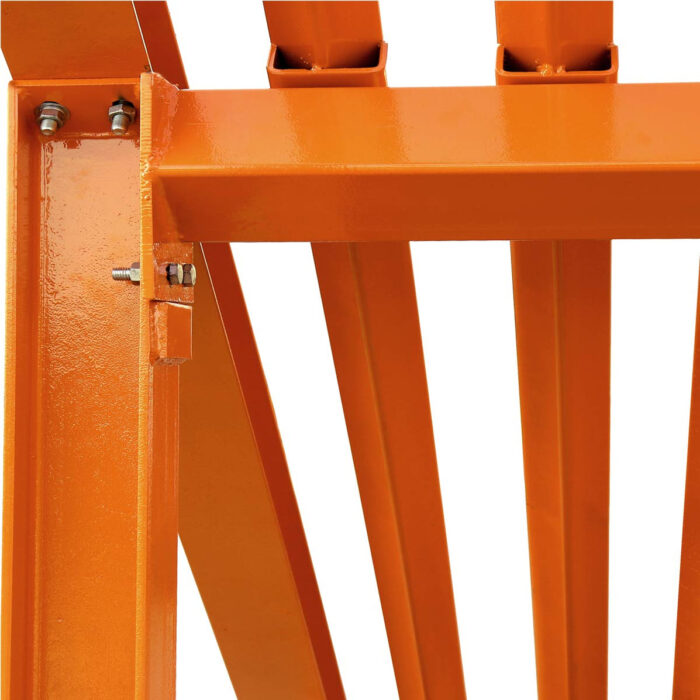

Primary frame:
4" x 4" I-beam posts
4" x 4" crossing square tubing
Sidewall and front wall steel plate: 10-gauge

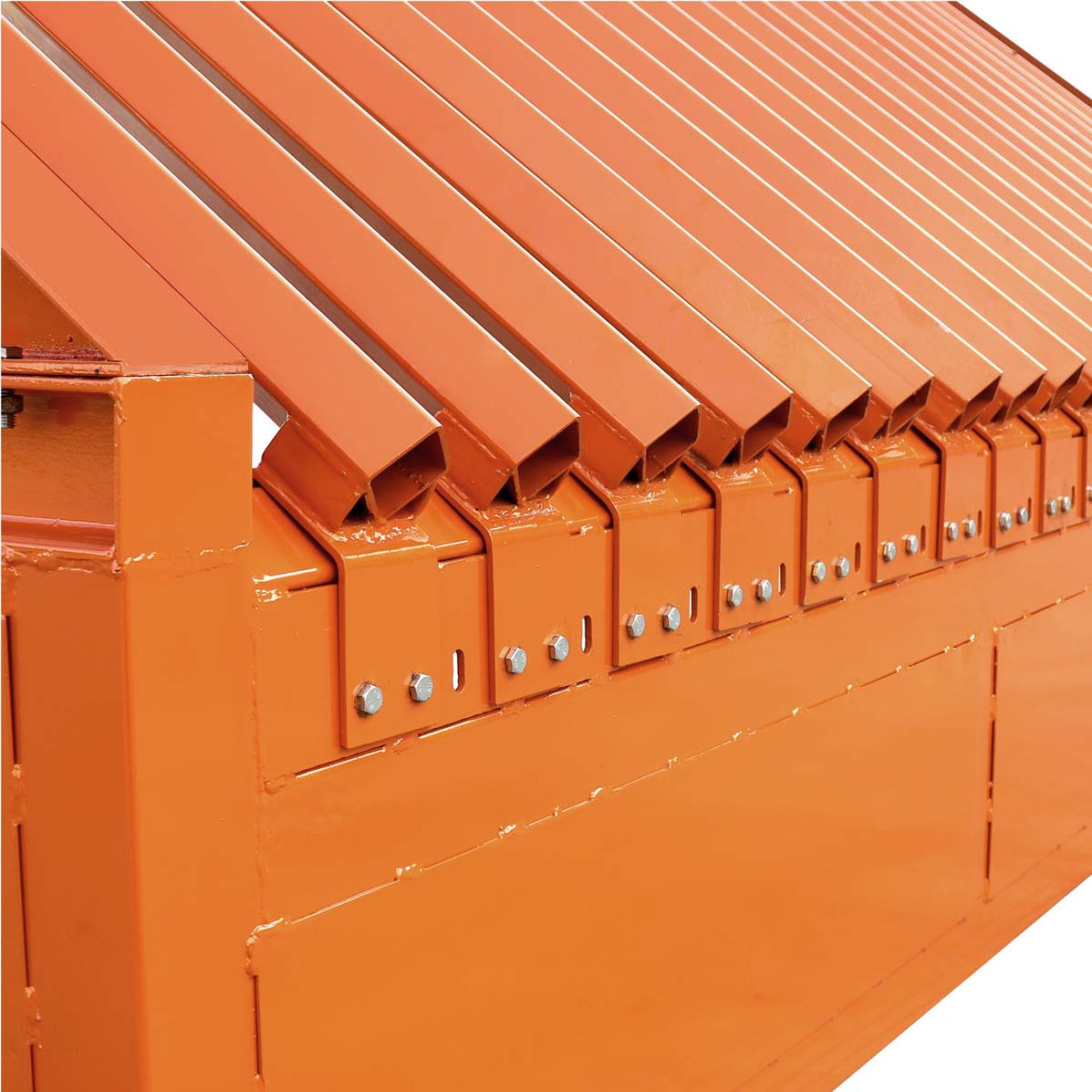

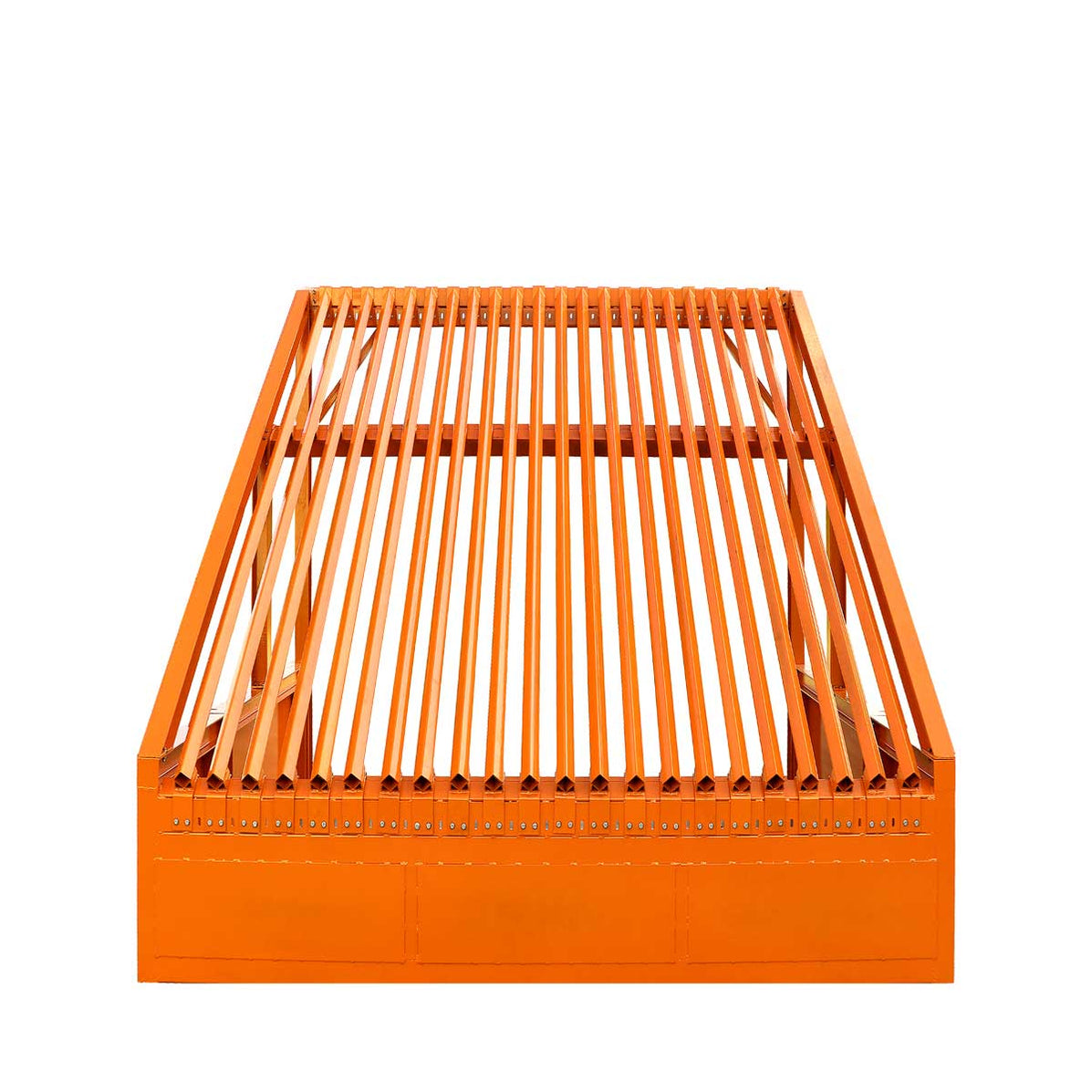

Deck bars: 1.6" x 1.6" square tubing, 11' in length, 8-gauge
Standard bar spacing: 3"
Standard bar quantity: 22 (3" spacing)
Minimum bar spacing: 1" (extra deck bars required)
Maximum bar quantity: 32 (1" spacing)
Maximum bar spacing capacity: 5"
First and the last deck bar opening: 2.75"
Slope angle: 37°
Spare deck bars sold separately
Assembly required
Assembly time: 2-3 hours for two handymen
