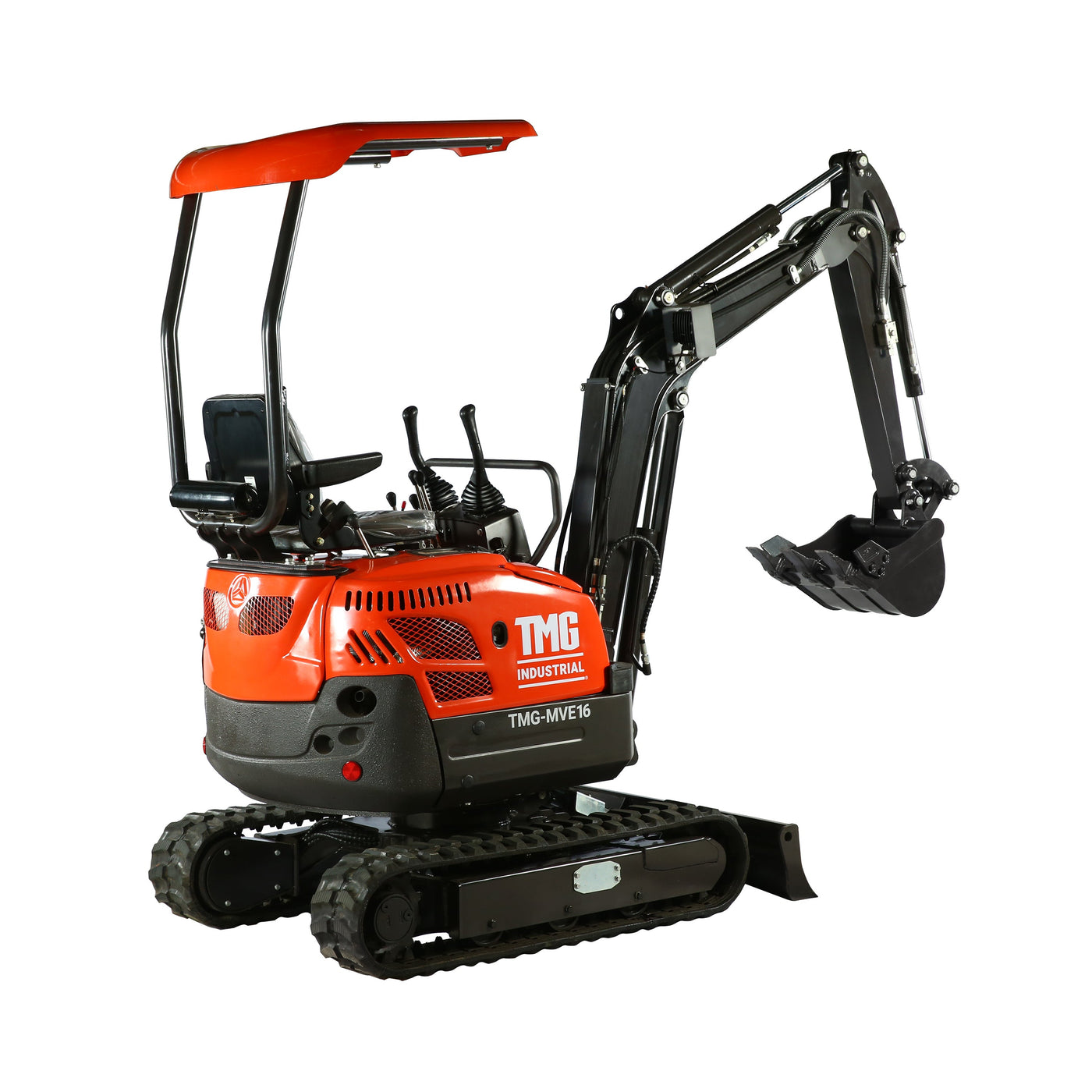

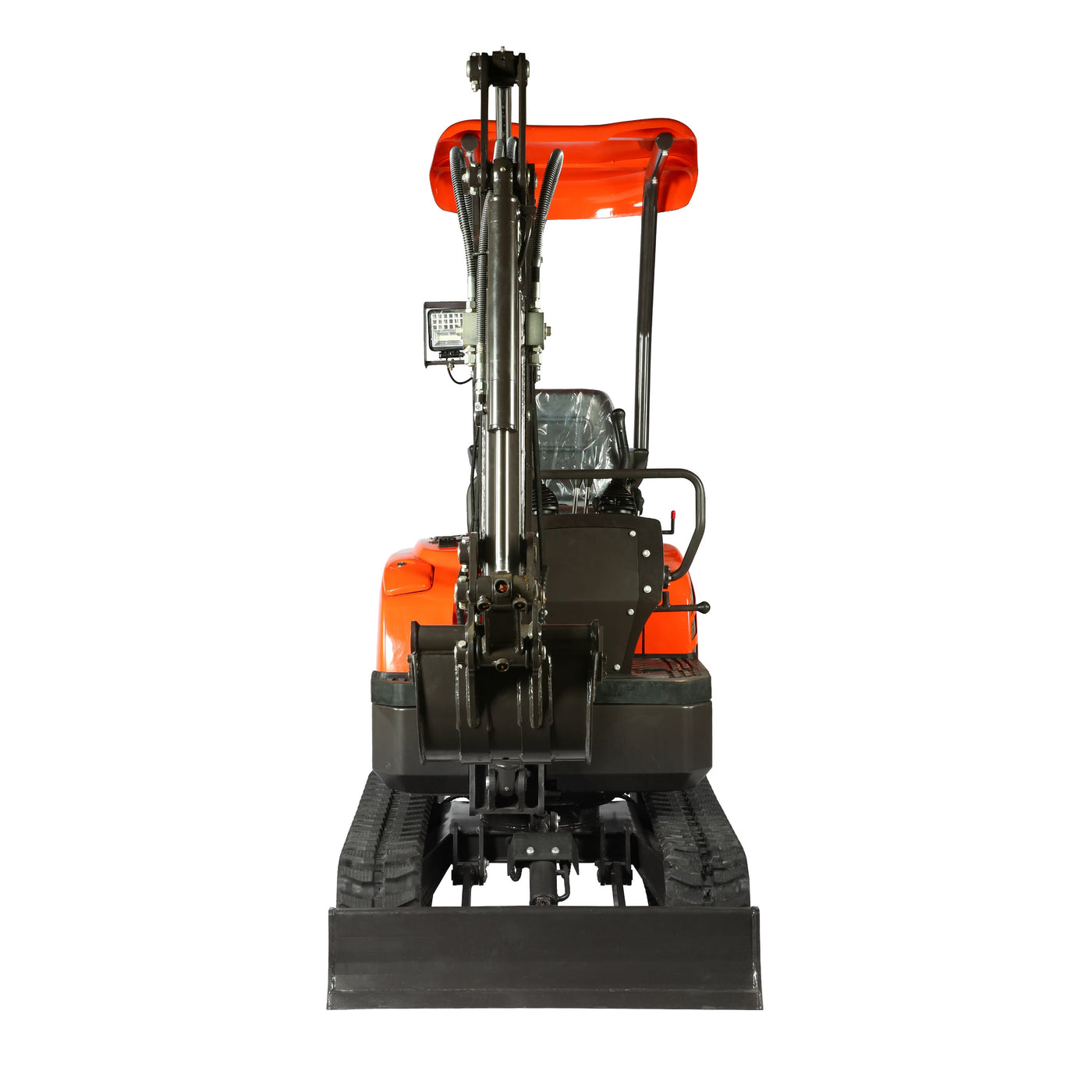

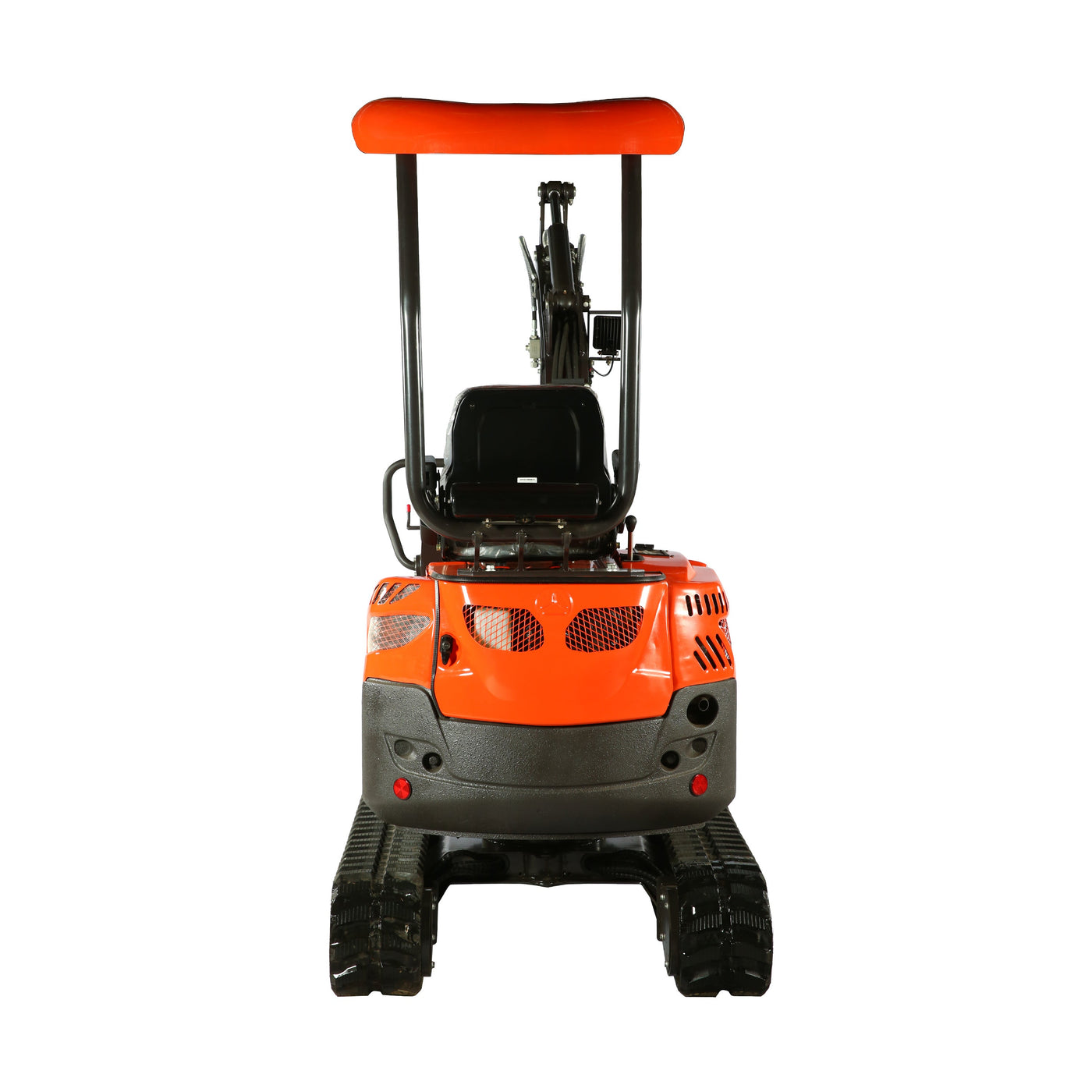

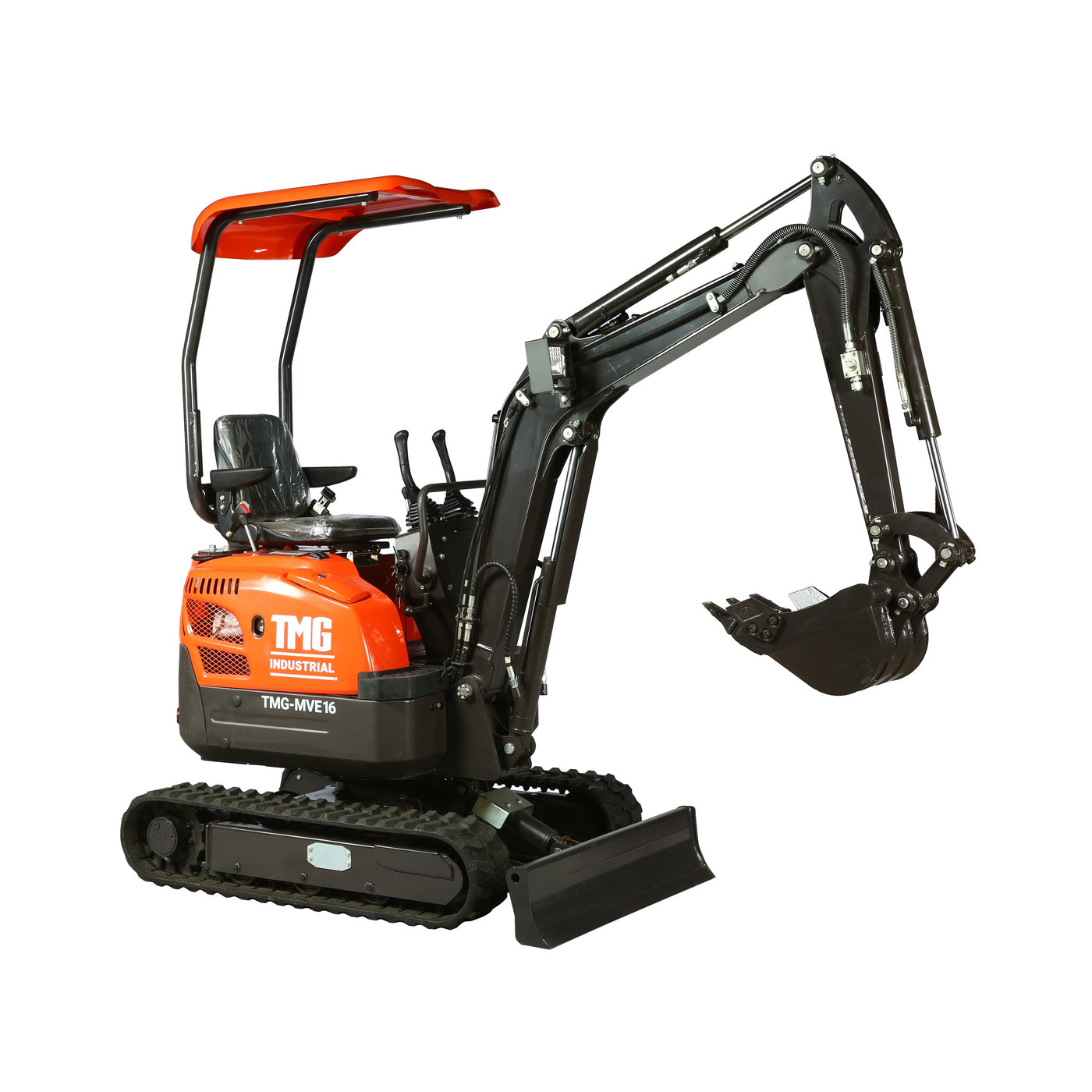

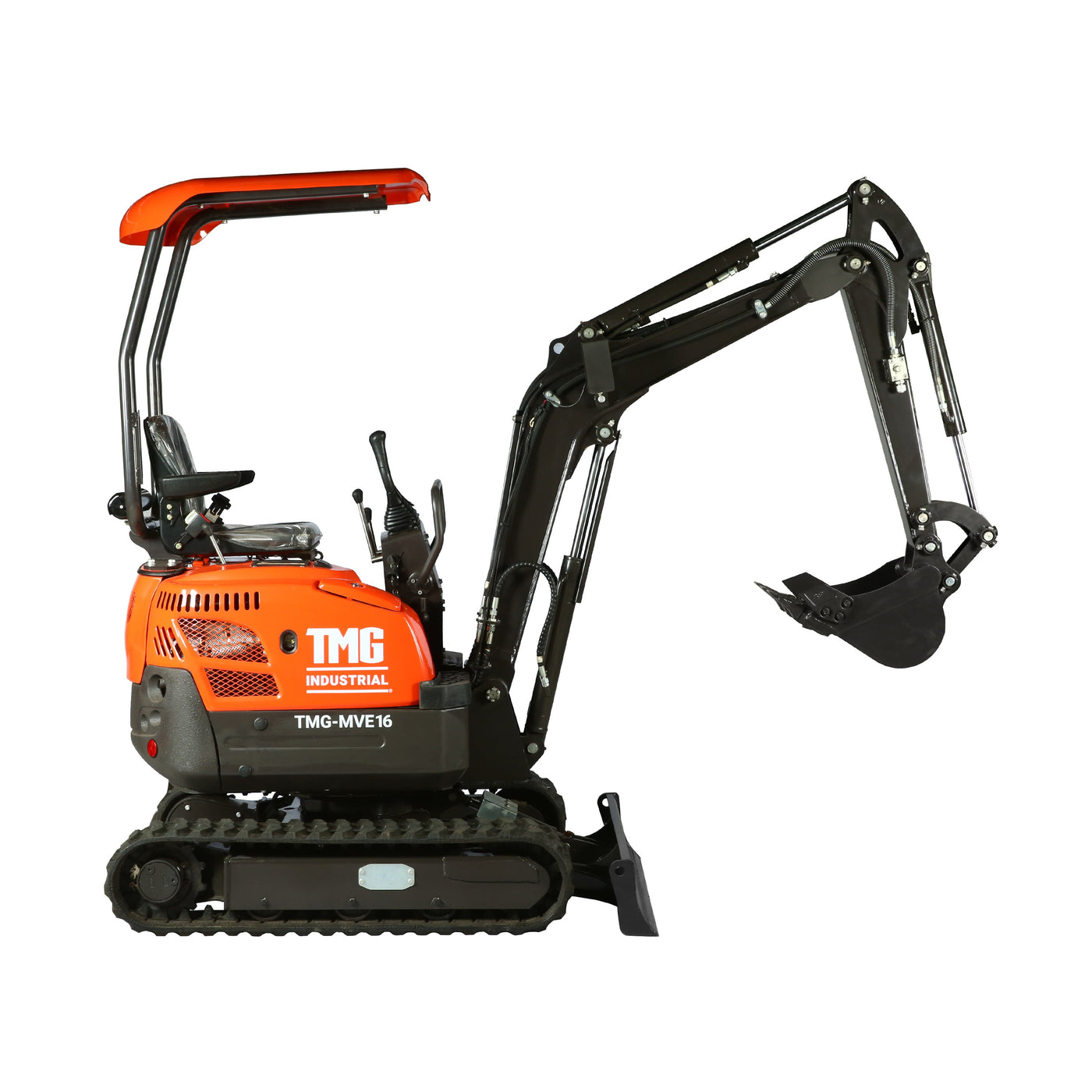

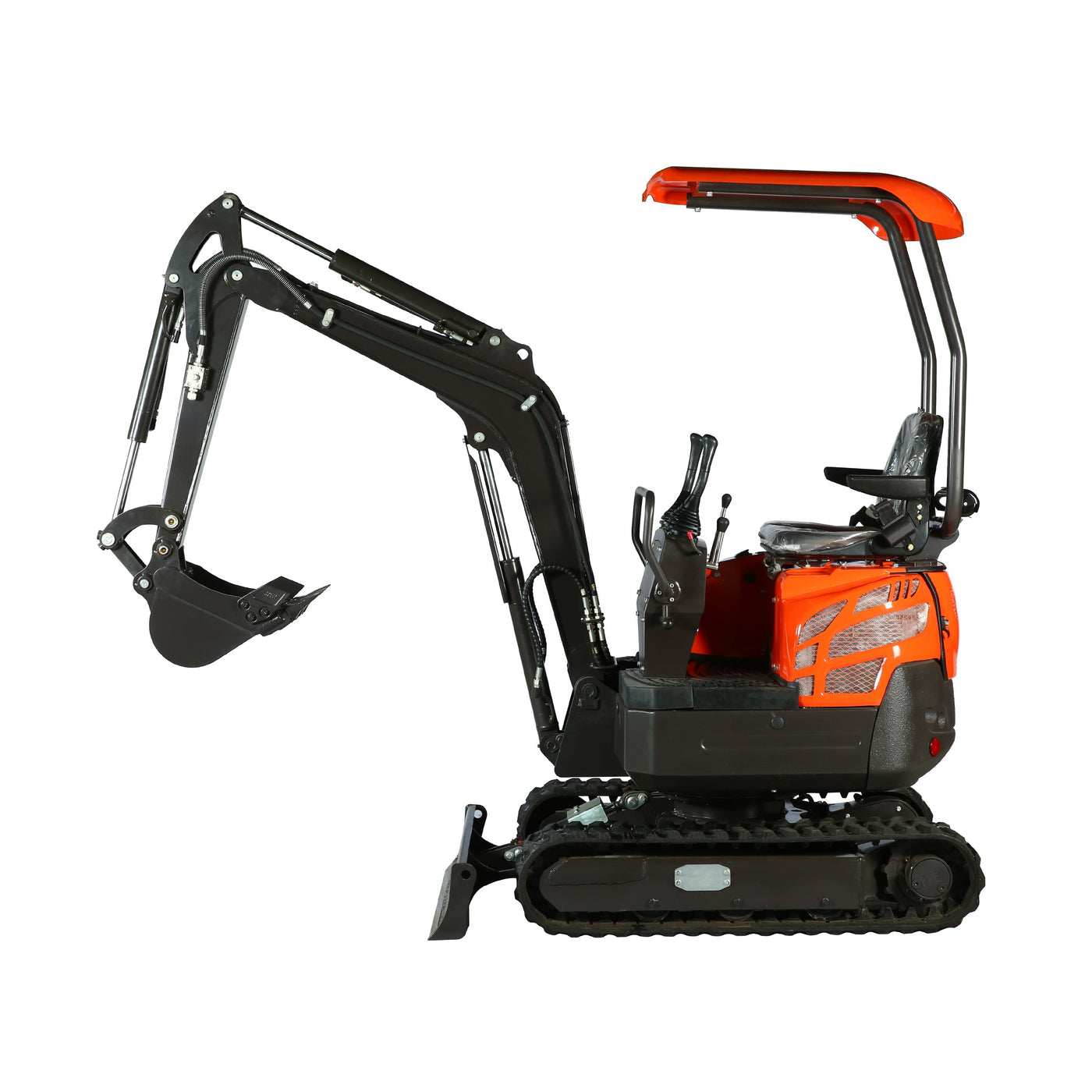

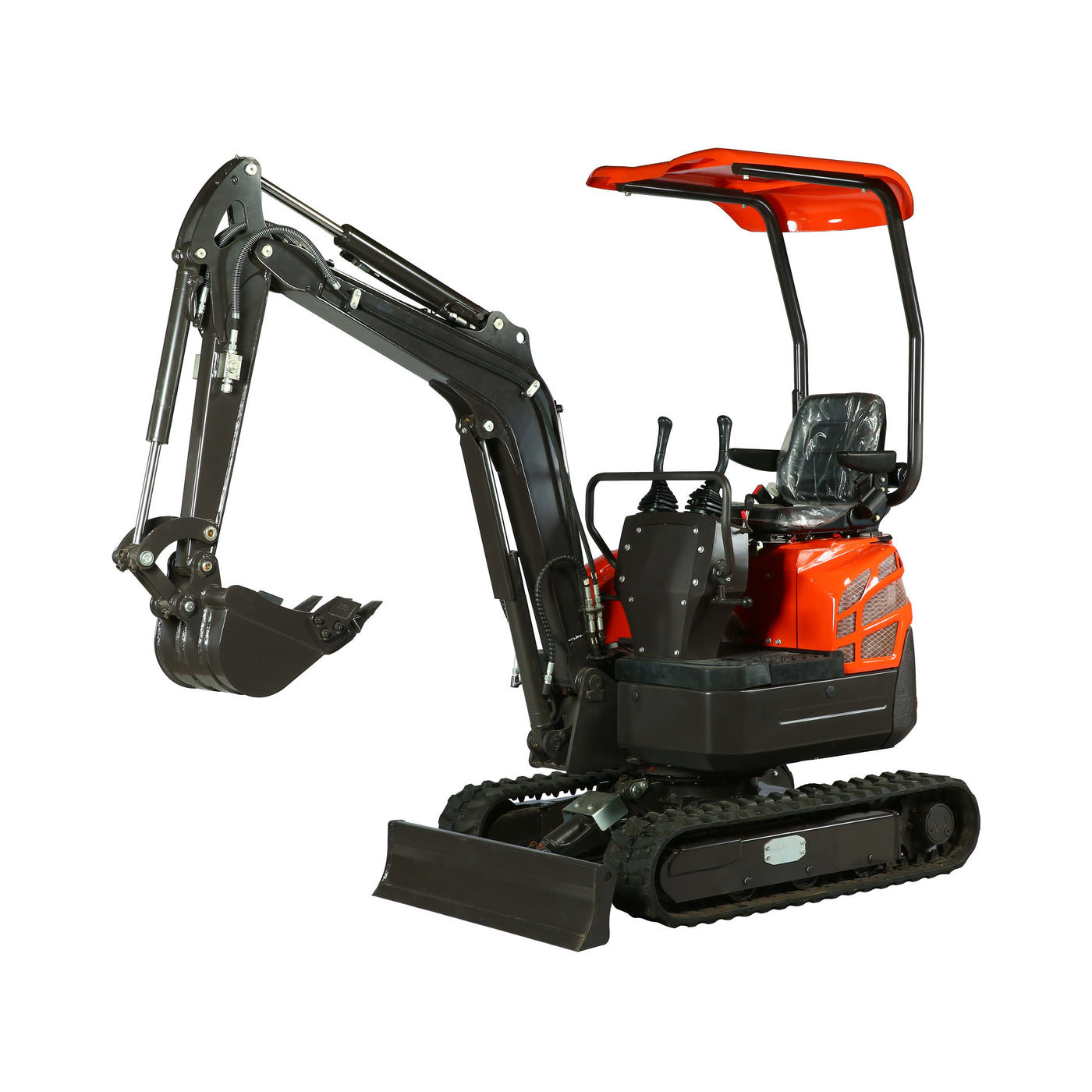

The TMG-MVE16 Mini Compact Excavator is a robust and reliable powerhouse machine designed for efficient excavation in tight spaces. Equipped with an industry-proven 16 HP 3-cycle water-cooled Kubota diesel engine, this mini excavator offers optimal performance while meeting EPA standards. The KDK hydraulic main pump and Eaton motor contribute to its smooth operation and precise control. Specifications
Operating weight: 3300 lb

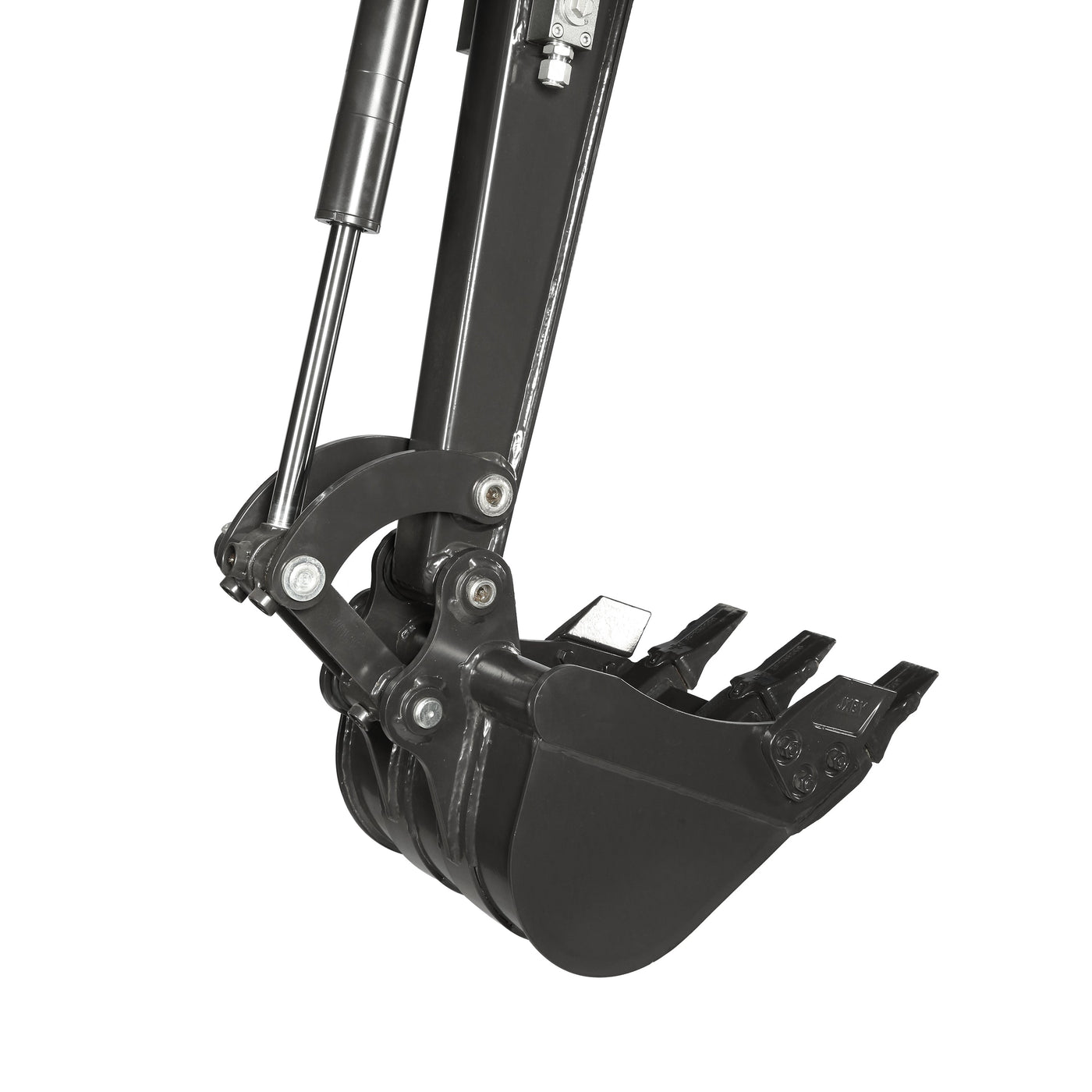

Standard bucket capacity: 1.6 cu-ft
Working device form: Backhoe
Max. travel speed: 3 km/h
Swing speed: 11 RPM
Max. gradeability: 30°
Track ground pressure: 35 kpa
Hydraulic oil tank capacity: 15 L
Fuel tank capacity: 19 L
Max. tractive force: 13.5 kN
Operating Range
Max. digging depth: 85″
Overall operating height (fully raised): 129″
Max. digging radius: 140″
Max. unloading height: 91″
Max. vertical digging depth: 69″
Min. turning radius: 57″
Max. lifting height dozer blade: 10″
Max. depth dozer blade: 8″
Boom swing-left: 50°
Boom swing-right: 55°
Dipper boom digging force 6.5 kN
Bucket digging force 10.5 kN
Main Dimensions
Track length: 57″
Upper chassis ground clearance: 17″
Counterweight turning radius: 29″
Chassis width: 44″
Track width: 9″
Track height: 13″
Transportation length: 125″
Height of seat to ground: 65″
Overall height: 94″

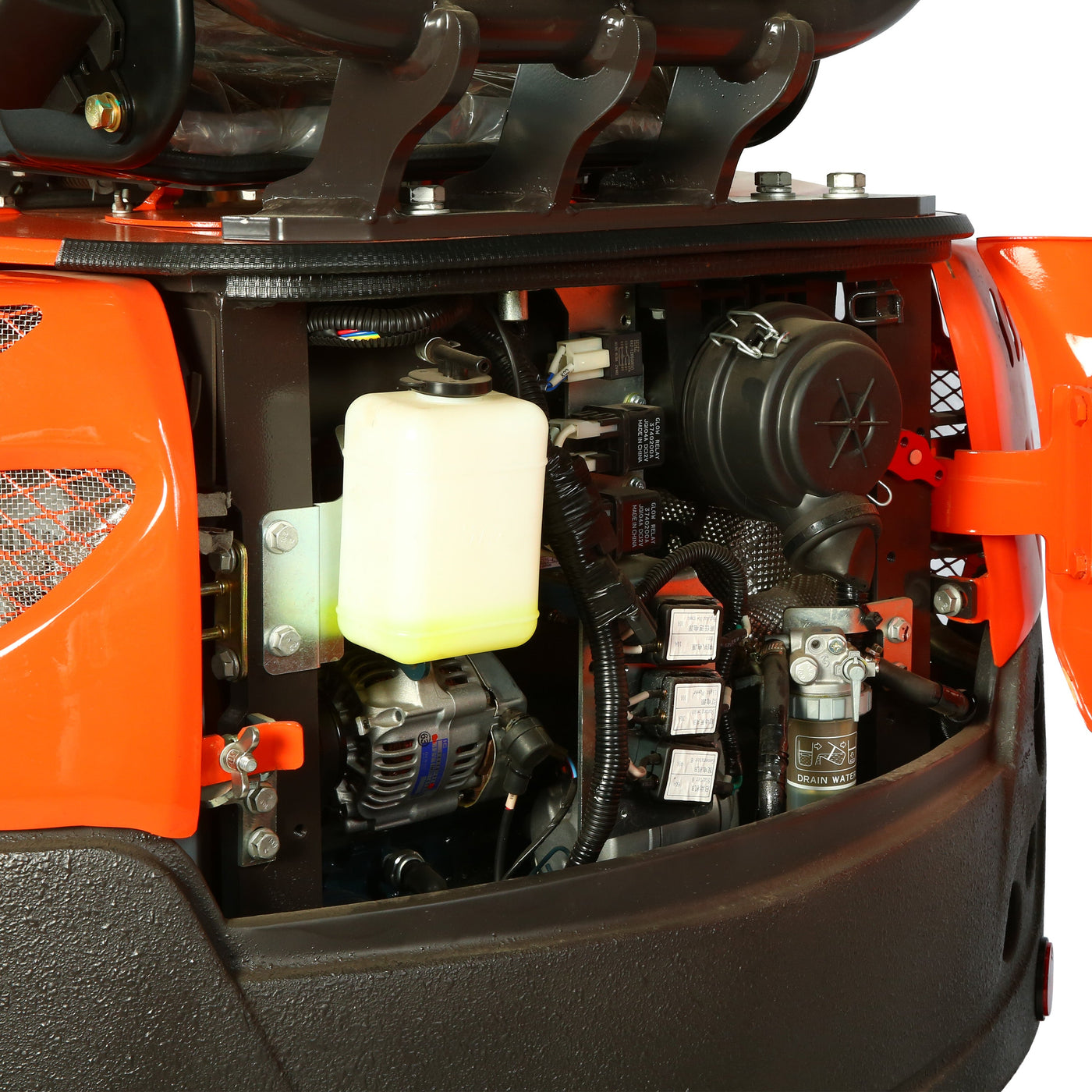

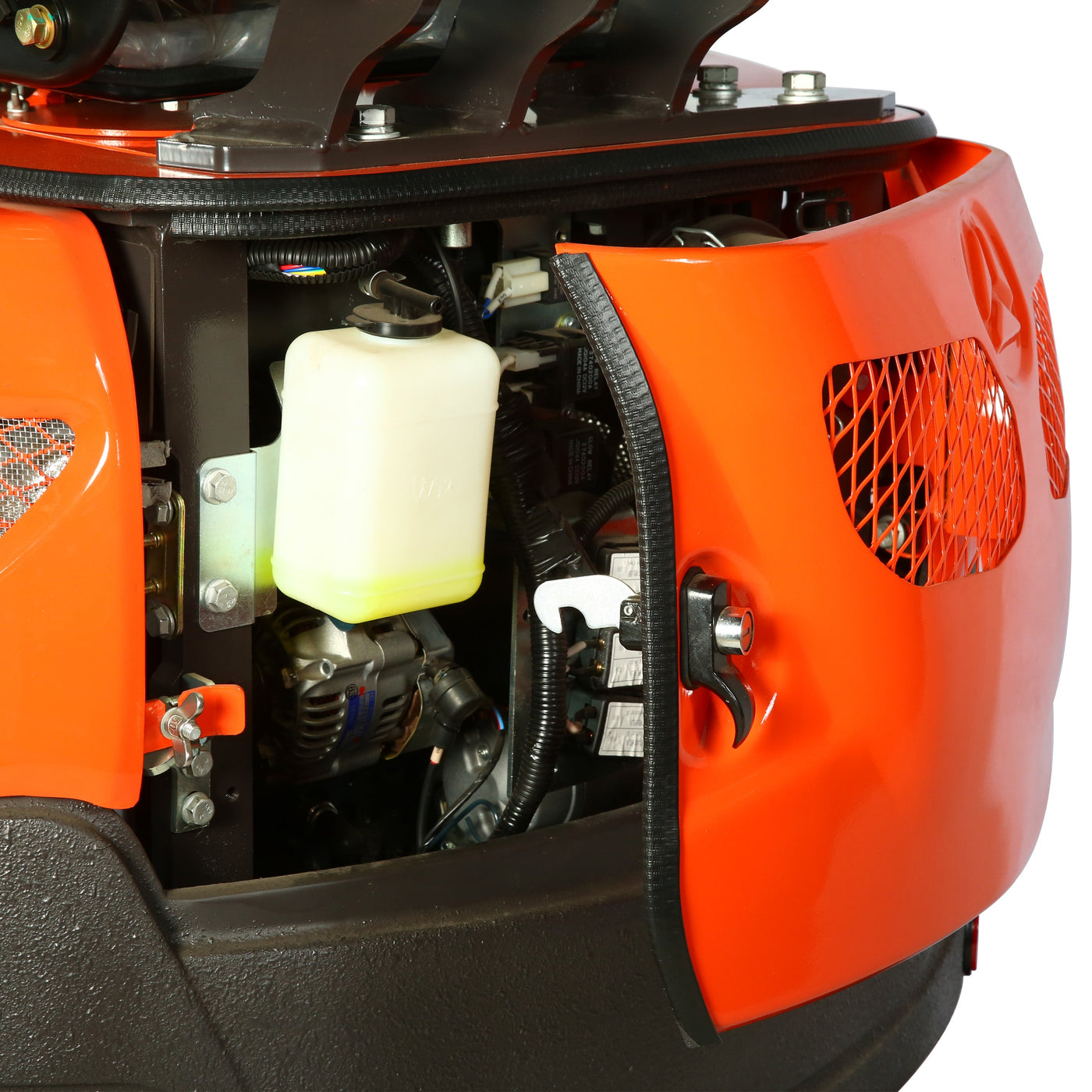

Engine
Powerful 16 HP Kubota 3-cycle water-cooled diesel engine
Displacement: 0.898 L
Start type: Electric start w/battery included(12V/20A)
Rated power: 16 HP/2300 RPM
Max. torque: 51.3N.m
Engine oil capacity: 15.3 L
